Mazda 6 Service Manual: Power outside mirror removal/installation

Mazda 6 Service Manual / Body / Outside mirror / Power outside mirror removal/installation

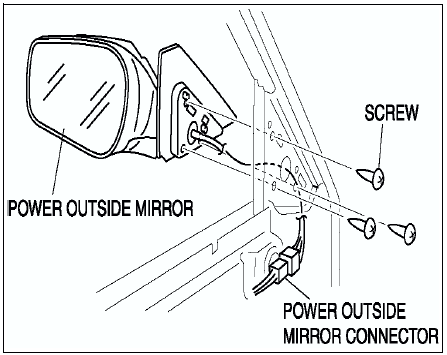

1. Disconnect the negative battery cable.

2. Remove the inner garnish.

3. Remove the front door trim.

4. Disconnect the power outside mirror connector.


5. Remove the screws and the mirror retention clips.

6. Remove the power outside mirror.

7. Install in the reverse order of removal.
