Mazda 6 Service Manual: Coil removal/installation
Note
- Do not remove the coil unless you are replacing it.
- When only the coil is replaced, the immobilizer system reprogram procedure is not necessary.
1. Disconnect the negative battery cable.
2. Remove the column cover.

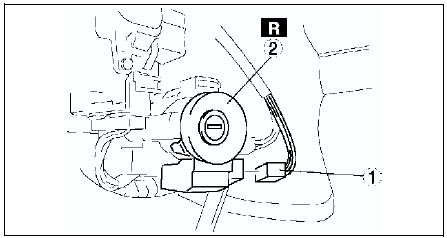

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Immobilizer system reprogram procedure
Note
When an error occurs during the reprogram procedures, except when
the PCM is replaced, repeat the procedure from Step 1. If you still cannot
reprogram, confirm how many keys can start t ...
