Mazda 6 Service Manual: Dtc c1186, c1266
Caution
- When attaching the tester lead to the DSC HU/CM connector the SST (49 G066 004) must be used.

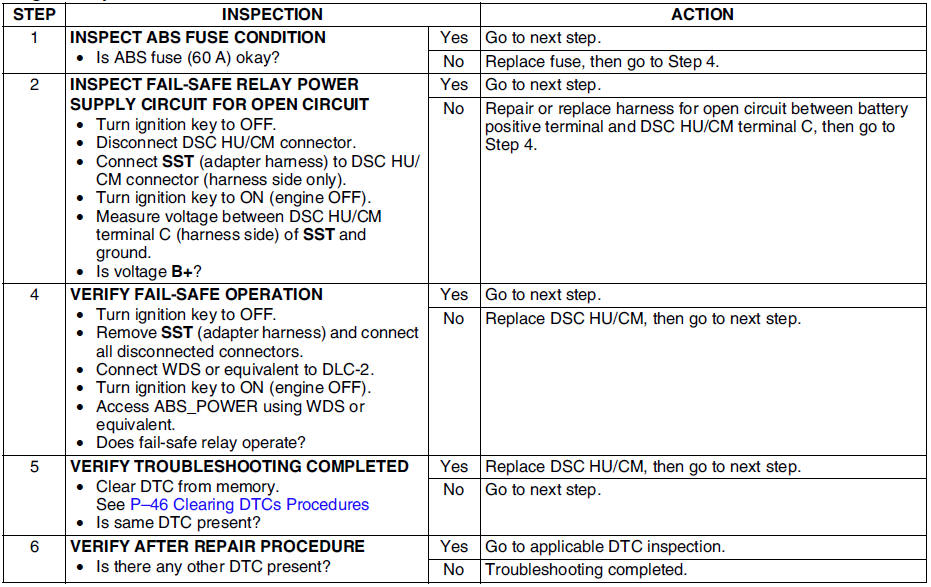

Diagnostic procedure
Dtc c1148, c1158, c1168, c1178, c1233, c1234, c1235, c1236
Diagnostic procedure
...
Dtc c1194, c1198, c1210, c1214, c1242, c1246, c1250, c1254, c1400, c1410,
c1957, c1958
Diagnostic procedure
...
