Mazda 6 Service Manual: Rear drain hose removal

Mazda 6 Service Manual / Body / Sliding sunroof / Rear drain hose removal

1. Remove the headliner.

2. Remove the trunk side trim. (4SD)

3. Remove the trunk side upper trim and trunk side trim. (5HB)

4. Disconnect the rear drain hose from the sunroof frame.

5. Remove the rear drain hose from the clips.

6. Pull the rear drain hose into the room side.

7. Remove the rear drain hose.

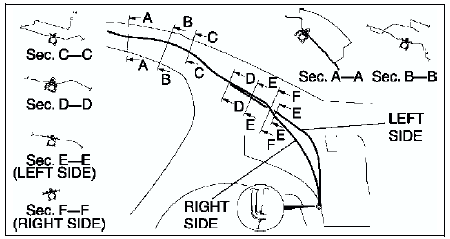

4SD

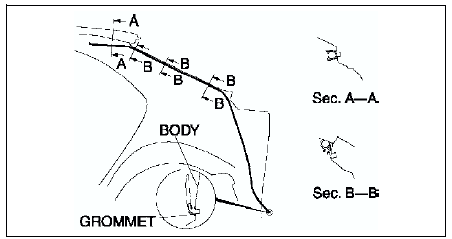

5HB


Front drain hose installation
Caution If the front drain hose is pinched or bent anywhere, the water in the hose may not discharge and enter the inside of the vehicle. During and after installation of the trims and the headli ...

Rear drain hose installation
Caution If the rear drain hose is pinched or bent anywhere, the water in the hose may not discharge and enter the inside of the vehicle. During and after installation of the trims and the head ...
