Mazda 6 Service Manual: Rear wheel alignment

Specification (Unloaded)*1

Normal


Elevated*3


*1 : Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.

*2 : Difference between left and right must not exceed 1°30'.

*3 : Distance between wheel center and fender brim is 392 mm {15.4 in} (reference value).

Note

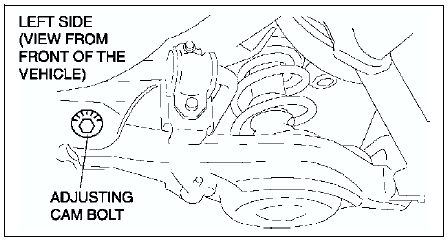

Camber Adjustment

1. Loosen the cam nut on the lower arm.

2. Turn the adjusting cam bolt to provide the correct camber angles as indicated.



3. Tighten the cam nut.

Tightening torque 86.2-116.6 N·m
{8.79-11.88 kgf·m, 63.58-85.99 ft·lbf}

Total Toe-in Adjustment

1. Loosen the locknut of the lateral link.


2. Adjust the toe-in turning the adjusting link.

Specification
Total Toe-in: 2±4 mm {0.08±0.16 in}

Note


3. Tighten the locknut.

Tightening torque 68.6-98.1 N·m
{7.0-10.0 kgf·m, 50.6-72.3 ft·lbf}
