Mazda 6 Service Manual: Rear wiper arm and blade adjustment

Mazda 6 Service Manual / Body electrical system / Wiper and washer / Rear wiper arm and blade adjustment

1. Operate the rear wiper motor to set the wiper in the park position.

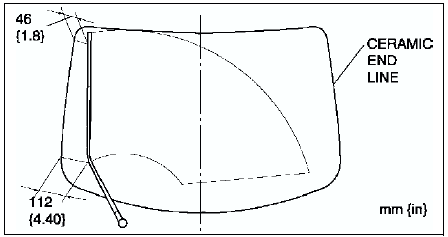

2. Set the rear wiper arm onto the ceramics end line.
