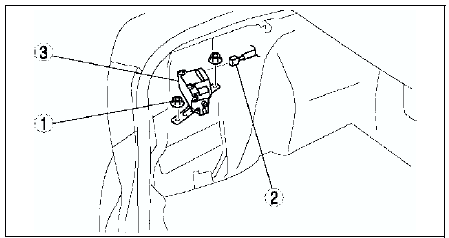

Mazda 6 Service Manual: Theft-deterrent siren removal/installation
1. Disconnect the negative battery cable.
2. Remove the left side trunk side trim.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Intruder sensor removal/installation
1. Disconnect the negative battery cable.
2. Remove the headliner.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
...
