Mazda 6 Service Manual: Windshield washer hose removal/installation

Mazda 6 Service Manual / Body electrical system / Wiper and washer / Windshield washer hose removal/installation

1. Remove the bonnet insulator.

2. Partially peel off the right side mud guard.

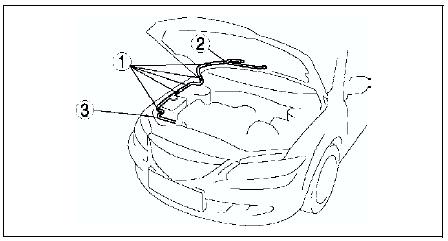

3. Remove in the order indicated in the table.



4. Install in the reverse order of removal.
