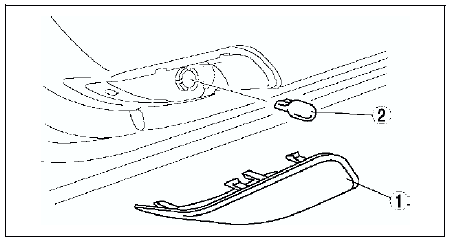

Mazda 6 Service Manual: Courtesy light bulb removal/installation
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
Trunk compartment light switch inspection
1. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION)
2. Disconnect the trunk compartment light switch connector.
3. Inspect for continuity between the trunk compartment light swit ...
Door switch removal/installation
Front
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
Rear
1. Disconnect the negative battery cable.
2. R ...
