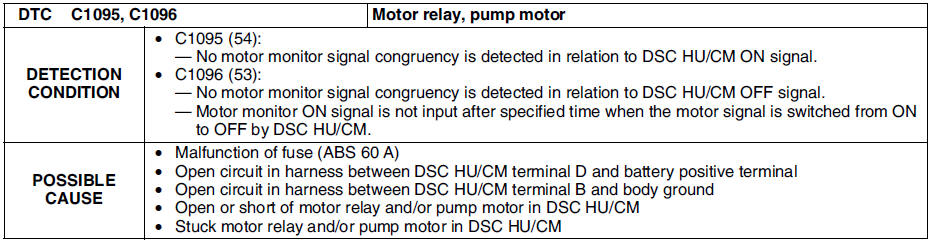

Mazda 6 Service Manual: Dtc c1095, c1096
Caution

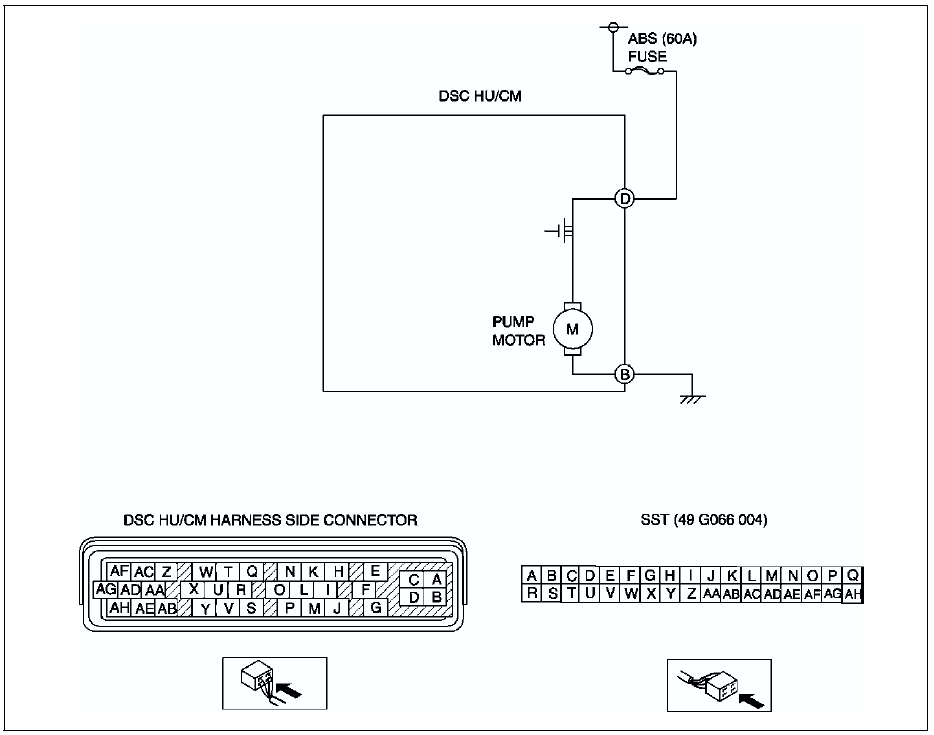

- When attaching the tester lead to the DSC HU/CM connector the SST (49 G066 004) must be used.

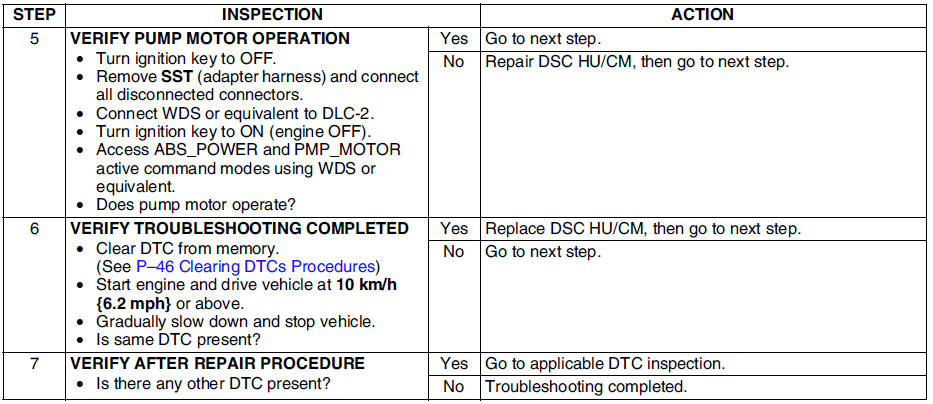

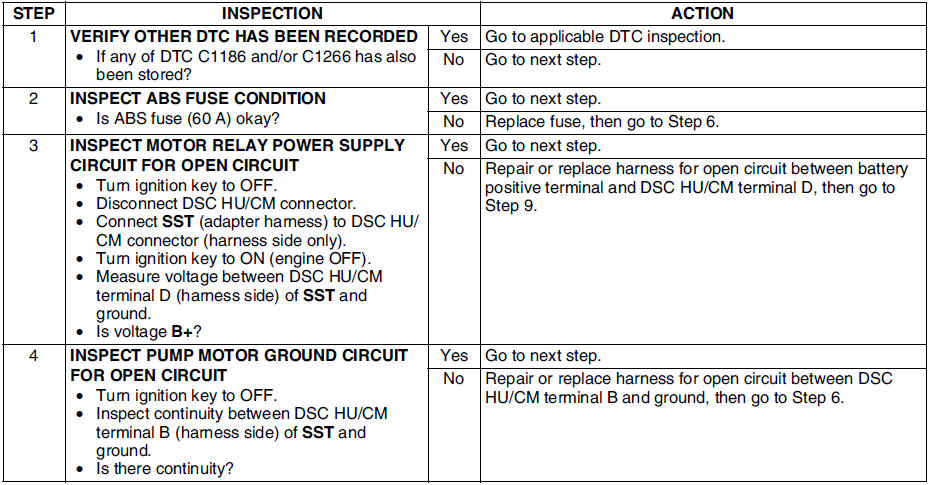

Diagnostic procedure
Dtc b2477
Diagnostic procedure
...
Dtc c1119
Diagnostic procedure
...
