Mazda 6 Owners Manual: Supplemental Restraint System Components

Mazda 6 Owners Manual / Essential Safety Equipment / SRS Air Bags / Supplemental Restraint System Components

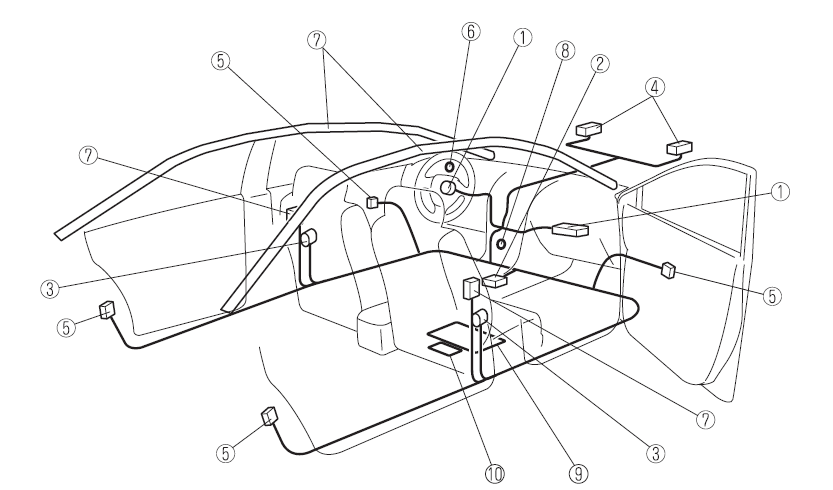

(With Front Passenger Occupant Classification System)

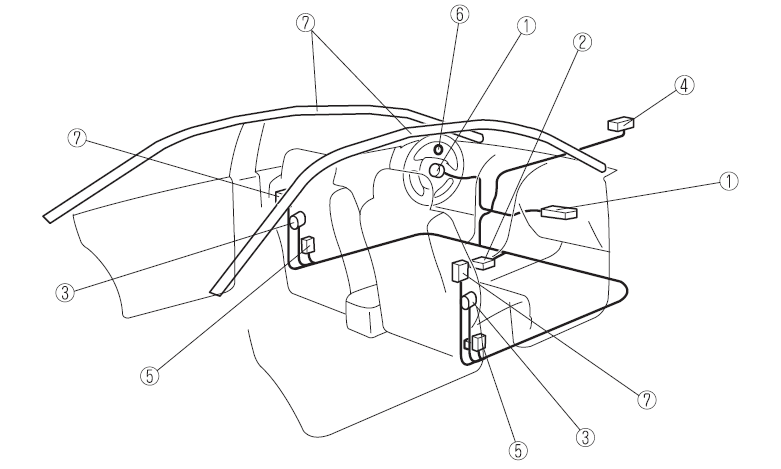

(Without Front Passenger Occupant Classification System)


  1. Driver/Front passenger inflators and air bags
  2. Roll-over sensor (some models), crash sensors, and diagnostic module (SAS unit).
  3. Seat belt pretensioners
  4. Front air bag sensors
  5. Side crash sensors
  6. Air bag/seat belt pretensioner system warning light
  7. Side and curtain inflators and air bags
  8. Front passenger air bag deactivation indicator light (some models)
  9. Front passenger occupant classification sensor (some models)
  10. Front passenger occupant classification module (some models)
Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include different types of air bags. Please verify the different types of air bags which are equipped on your vehicle by locating the “SRS ...

How the SRS Air Bags Work
Your Mazda is equipped with the following types of SRS air bags. SRS air bags are designed to work together with the seat belts to help to reduce injuries during an accident. The SRS air bags are ...
