Mazda 6 Owners Manual: When Trunk Lid Cannot be Opened
If the vehicle battery is dead or there is a malfunction in the electrical system and the trunk lid cannot be opened, perform the following procedure as an emergency measure to open it:

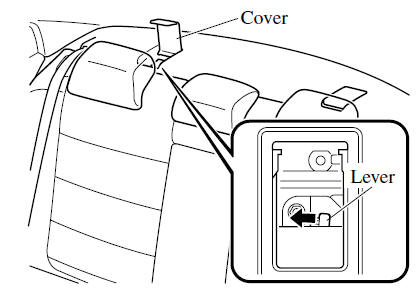

1. Open the cover.
2. Move the lever to the left to fold the seatback.

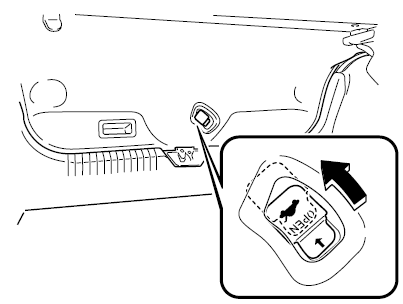

3. Move the lever to the left to open the trunk lid.
(Type A)
(Type B)
After performing this emergency measure, have the vehicle inspected at an Authorized Mazda Dealer as soon as possible.
