Mazda 6 Service Manual: Air filter inspection
1. Remove the air filter.
2. Inspect the air filter.
- If the air filter is damaged, excessively dirty, or foul smelling, replace the air filter.
Note
- The air filter cannot be reused by cleaning it with water or compressed air.

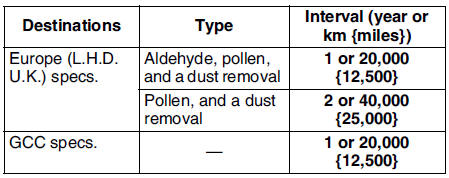

- Replace the air filter at the following interval, depending on operating conditions.
Air filter removal/installation
1. Remove the glove compartment.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal. ...
A/c unit removal/installation
1. Disconnect the negative battery cable.
2. Discharge the refrigerant from the system. (See RECOVERY.) (See CHARGING.)
3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT.)
4. Remove the ...
