Mazda 6 Service Manual: Door lock timer unit removal/installation

Mazda 6 Service Manual / Body / Power door lock system / Door lock timer unit removal/installation

1. Disconnect the negative battery cable.

2. Remove the glove compartment. (L.H.D.)

3. Remove the bolt.


4. While inclining the door lock timer unit along the body panel in the direction indicated by the arrow, disengage the bracket hook from the hole in the body panel.

5. Disconnect the door lock timer unit connector.

6. Remove the door lock timer unit.

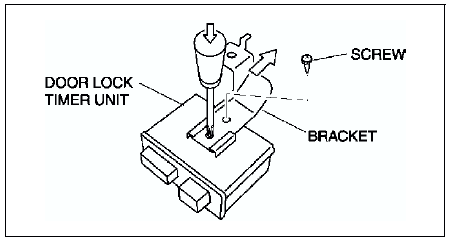

7. Remove the screw, then remove the bracket.

Note


8. Install in the reverse order of removal.

Liftgate lock actuator inspection
1. Disconnect the liftgate lock actuator connector. 2. Apply battery positive voltage to the liftgate lock actuator terminals and inspect the operation of the liftgate lock actuator. If not as ...

Door lock timer unit inspection
1. Measure the voltage at the door lock timer unit terminals (other than terminal 1E and 2W) as indicated below. If not as specified, inspect the parts listed under Action. 2. Disconnect the ...
