Mazda 6 Owners Manual: Luggage Compartment
Loading golf bags
Golf bags can be carried in the luggage compartment.
Up to three golf bags can be carried in the luggage compartment.

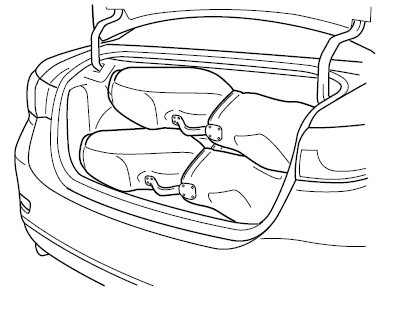

Place each of the three golf bags into the luggage compartment with the bottom of each bag pointed to the left, and then set the top of each bag so that it is pointed to the right.
NOTE
Some golf bags cannot fit depending on their size.

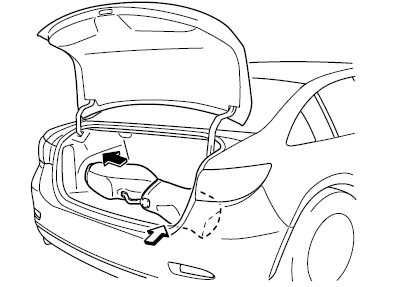

Opening and Closing the Trunk Lid
Opening the trunk lid
Using the remote release button
Push the remote release button.
Using the electric trunk lid opener
(With the advanced keyless function)
A locked trunk lid can also be ope ...
Inside Trunk Release Lever (Some models)
Your vehicle is equipped with an inside trunk release lever that provides a means
of escape for children and adults in the event they become locked inside the trunk.
No matter how careful adults mi ...
