Mazda 6 Owners Manual: Opening the Hood

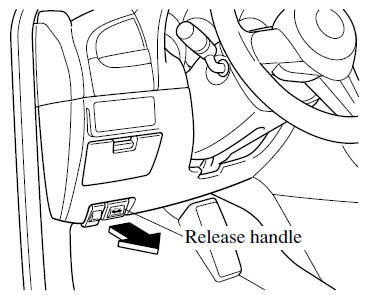

1. With the vehicle parked, pull the release handle to unlock the hood.
2. Insert your hand into the hood opening, slide the latch lever to the right, and lift up the hood.
NOTE
The lever is located a little to the left of center when facing the vehicle.

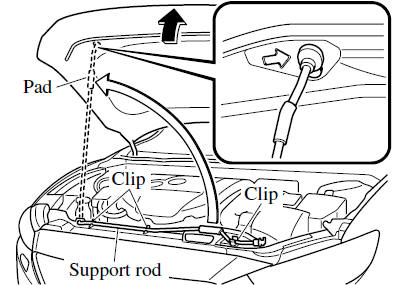

3. Grasp the support rod in the padded area and secure it in the support rod hole indicated by the arrow to hold the hood open.
Hood
WARNING
Always check that the hood is closed and securely locked: A hood
that is not closed and securely locked is dangerous as it could fly open while the
vehicle is moving and block the driver' ...
Closing the Hood
1. Check under the hood area to make certain all filler caps are in place and
all loose items (e.g. tools, oil containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on the su ...
