Mazda 6 Service Manual: Sunroof motor inspection

Mazda 6 Service Manual / Body / Sliding sunroof / Sunroof motor inspection


1. Remove the sunroof motor.

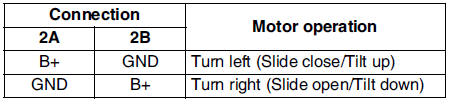

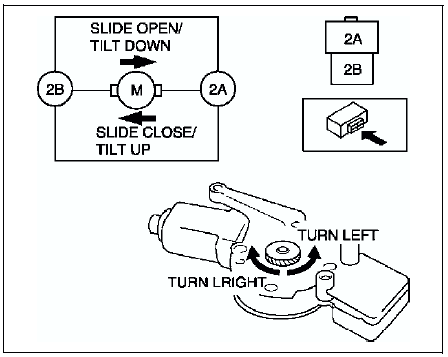

2. Apply battery positive voltage to the sunroof motor terminals and inspect the operation of the sunroof motor.

Limit Switch

1. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

2. Verify the glass panel position.

3. Disconnect the connector.

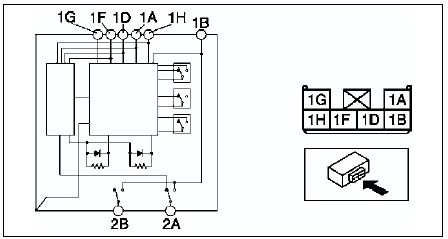

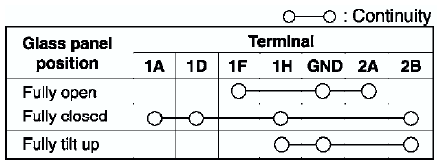

4. Inspect for continuity between the sunroof motor terminals using an ohmmeter.

Sunroof motor installation
1. Connect the sunroof motor connector. 2. Connect the sunroof switch connector. 3. Connect the negative battery cable. 4. Turn the ignition switch to ON position. 5. Press the CLOSE side of the s ...

Sunroof relay inspection
Note Sunroof relay is built in the sunroof motor. 1. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.) 2. Connect the sunroof switch connector. 3. Measure the voltage at the sunroof ...
