Mazda 6 Service Manual: Oil seal (differential) replacement
1. On level ground, jack up the vehicle and support it evenly on safety stands.
2. Drain the oil from the transaxle.
3. Remove the front wheels and splash shields.
4. Separate the drive shaft and joint shaft from the transaxle. (See DRIVE SHAFT REMOVAL/INSTALLATION.) (See JOINT SHAFT REMOVAL/INSTALLATION.)

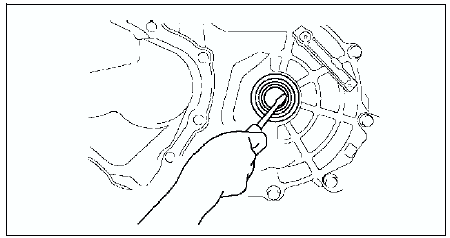

5. Remove the oil seals using a screwdriver.

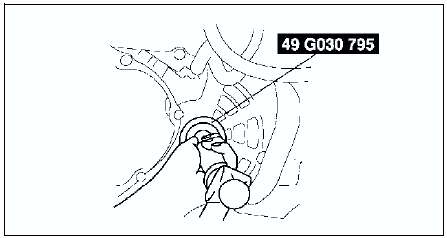

6. Using the SST
and a hammer, tap each new oil seal in evenly until the SST
contacts the transaxle case.
7. Coat the lip of each oil seal with transaxle oil.
8. Insert the drive shaft and joint shaft to the transaxle. (See DRIVE SHAFT REMOVAL/INSTALLATION.) (See JOINT SHAFT REMOVAL/INSTALLATION.)
9. Install the wheels and splash shields.
10. Add the specified amount and type of oil. (See TRANSAXLE OIL REPLACEMENT.)
Transaxle oil replacement
1. Remove the drain plug with the washer.
2. Drain the oil into a suitable container.
3. Install a new washer and the drain plug.
Tightening torque
40-58 N·m {4.0-6.0 kgf·m, 29-43 ft·lbf}
...
Vehicle speedometer sensor removal/installation
Without ABS
1. Disconnect the negative battery cable.
2. Remove the battery and battery tray.
3. Remove the air cleaner compornent. (See INTAKE-AIR SYSTEM
REMOVAL/INSTALLATION.)
4. Disconnect th ...
