1. Remove the driver-side front door trim.

2. Connect the power window main switch connector.

3. Measure the voltage at the power window main switch terminals as indicated below.

4. Disconnect the power window main switch connector before inspecting for continuity at terminals 1M (1J*2) and 1F (1L*2).

If not as specified, inspect the parts listed under Action.
If the parts and wiring harnesses are okay but the system still does not work properly, replace the power window main switch.

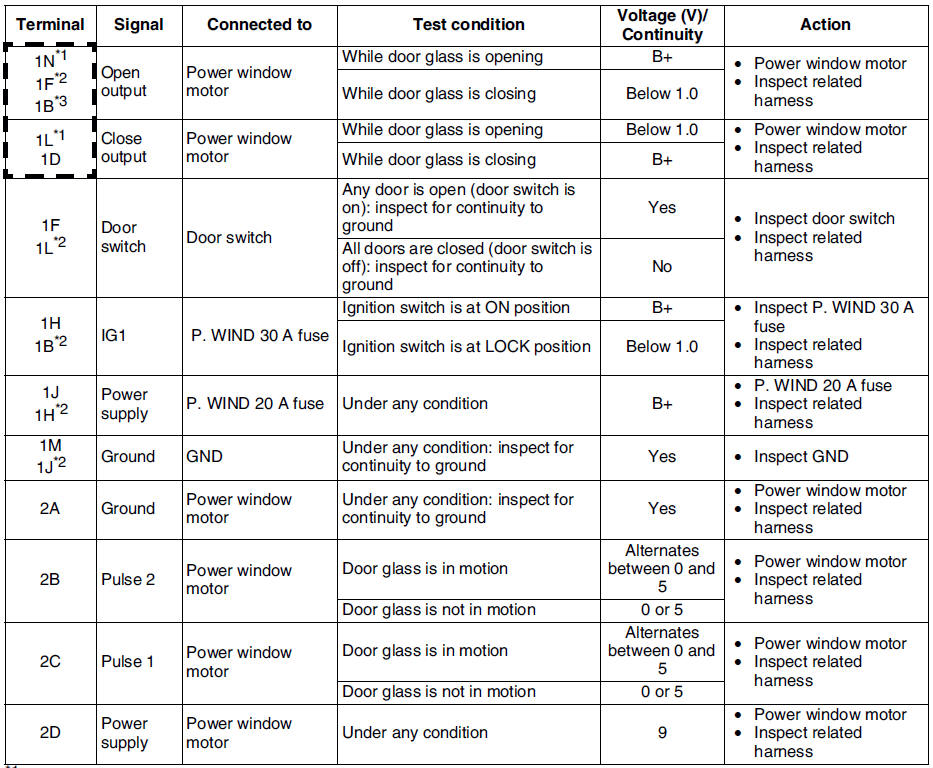

Terminal voltage list (Reference)

*1 : With rear power window system (L.H.D.)

*2 : Without rear power window system (L.H.D.)

*3 : R.H.D.

Except drivers side

1. Turn the power-cut switch to UNLOCK.

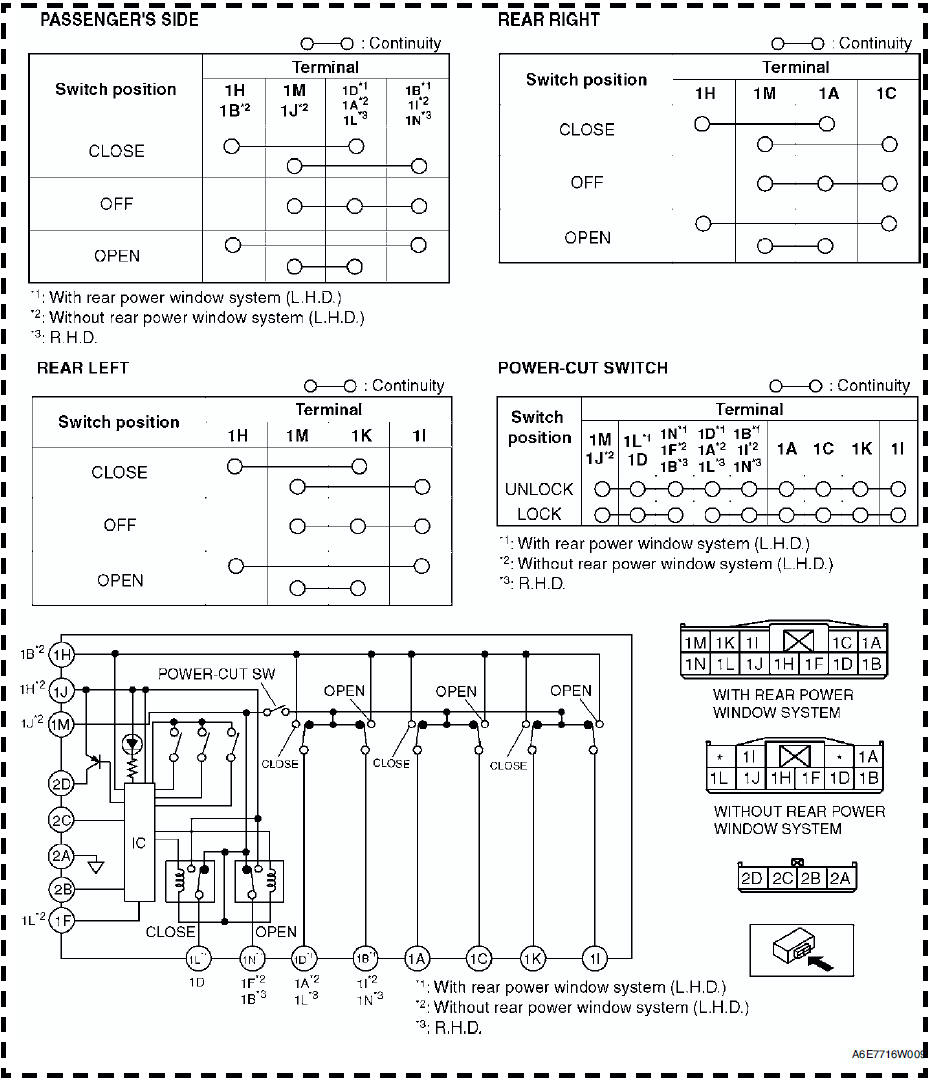

2. Inspect for continuity between the power window main switch terminals using an ohmmeter.

If not as specified, replace the power window main switch.

Power window switch removal/installation

1. Disconnect the negative battery cable. 2. Remove the front door trim or rear door trim. 3. Remove the screws, then the power window switch. 4. Install in the reverse order of removal. ...

Power window subswitch inspection

1. Inspect for continuity between the power window subswitch terminals. If not as specified, replace the power window subswitch. ...
