Mazda 6 Owners Manual: Armrest

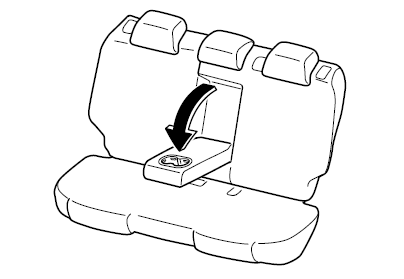

The rear armrest in the center of the rear seatback can be used (no occupant in the center seat) or placed upright.
WARNING
Never put your hands and fingers around the moving parts of the seat and armrest:
Putting your hands and fingers around the moving parts of the seat and armrest is dangerous as they could get injured.
