Mazda 6 Owners Manual: Height Adjustment

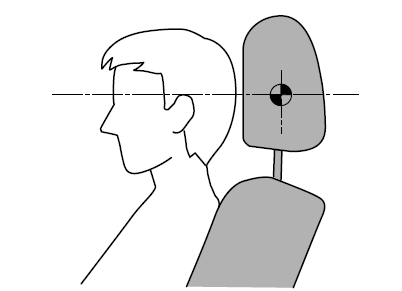

Adjust the head restraint so that the center is even with the top of the passenger's ears.
To raise a head restraint, pull it up to the desired position.
To lower the head restraint, press the stopcatch release, then push the head restraint down.

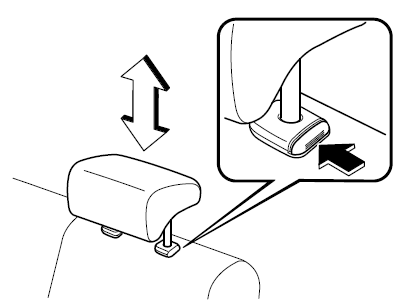

Front outboard seat

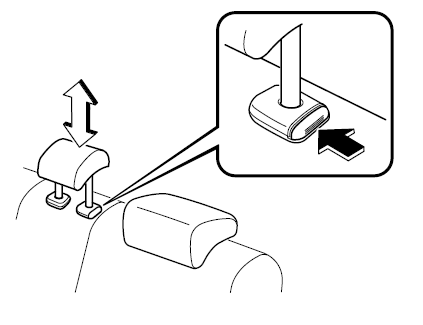

Rear outboard seat

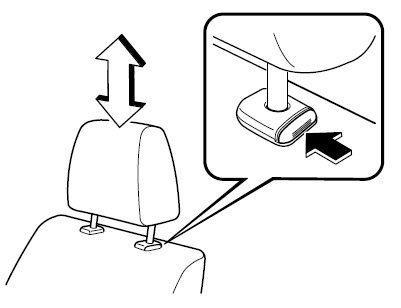

Rear center seat
Head Restraints
Your vehicle is equipped with head restraints on all outboard seats and the rear
center seat. The head restraints are intended to help protect you and the passengers
from neck injury.
WARNING
Al ...
Removal/Installation
To remove the head restraint, pull it up while pressing the stop-catch.
To install the head restraint, insert the legs into the holes while pressing
the stop-catch.
WARNING
Always drive with the ...
