Mazda 6 Owners Manual: How to use USB mode


This unit does not support a USB 3.0 device. In addition, other devices may not be supported depending on the model or OS version.

USB devices formatted to FAT32 are supported (USB devices formatted to other formats such as NTFS are not supported).

Playback

1. Select the icon on the home
screen to display the Entertainment screen.

2. Select or

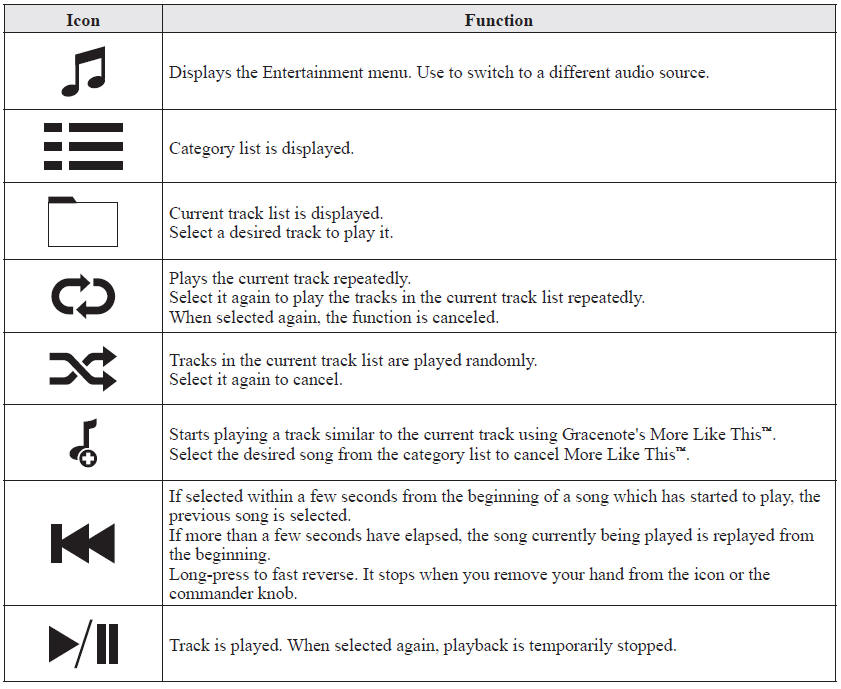

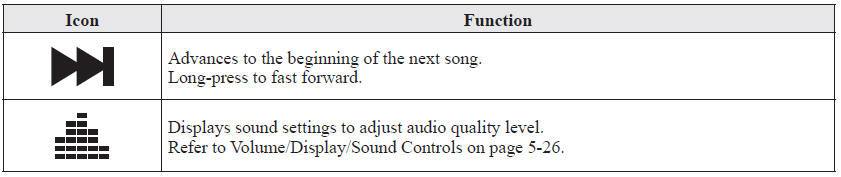

to switch the USB mode. The following
icons are displayed in the lower part of the center display.



NOTE

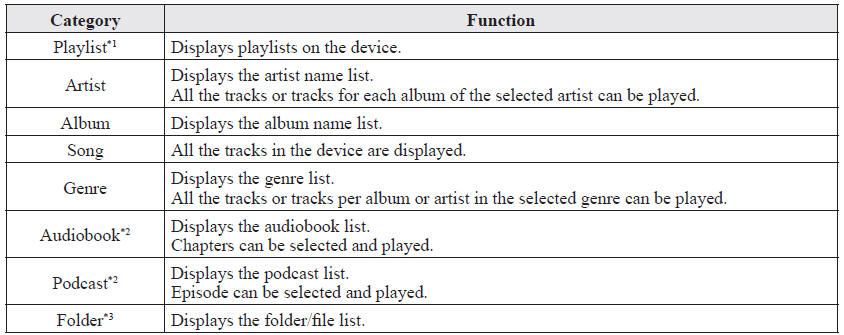

Category list

Select the icon to display the
following category list.

Select a desired category and item.


*1 Playlist folders of Apple devices are not supported.

*2 Apple device only

*3 USB-Sticks and USB-Androidâ„¢ device only

Example of use (to play all tracks in USB device)

(Method 1)

1. Select  to display the
category list.

2. Select .


All the tracks in the USB device are displayed.

3. Select a desired track.

The selected track is played. All the tracks in the USB device can be played by continuing playback.

NOTE

Only the tracks in the desired category selected in Step 2 are played.

(Method 2)*1

1. Select to display the category
list.

2. Select .


All the folders in the USB device are displayed.

3. Select .


All the tracks in the USB device are displayed.

4. Select a desired track.

The selected track is played. All the tracks in the USB device can be played by continuing playback.

*1 Can be operated using an Androidâ„¢ device or USB flash memory.

NOTE

Only the tracks in the desired folder selected in Step 3 are played.

How to use AUX mode
1. Select the icon on the home screen to display the Entertainment screen. 2. Select to switch to the AUX mode. The following icons are displayed in the lower part of the center display. NOT ...

Gracenote Database
When a USB device is connected to this unit and the audio is played, the album name, artist name, genre and title information are automatically displayed if there is a match in the vehicle's datab ...
