Mazda 6 Service Manual: Tweeter removal/installation
1. Disconnect the negative battery cable.

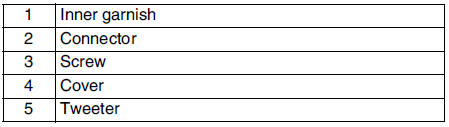

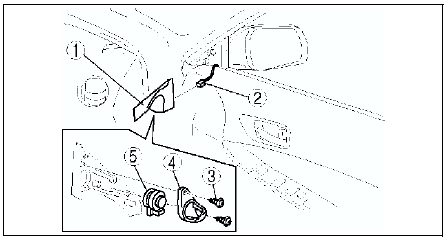

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
