Mazda 6 Service Manual: A/c unit disassembly/assembly

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.




Evaporator Temperature Sensor Assembly Note

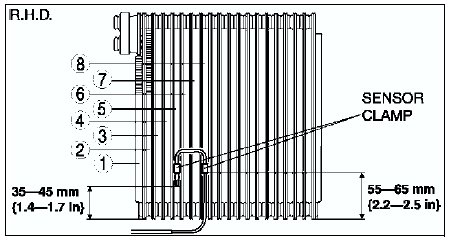

Assemble the evaporator temperature sensor as shown in the figure.



Sensor Clamp Assembly Note

Attach the sensor clamp as shown in the figure.


Expansion Valve Assembly Note

Attach the insulator as shown in the figure.


Outlet Pipe Assembly Note

Wrap the insulator around the outlet pipe as shown in the figure.



A/c unit removal/installation
1. Disconnect the negative battery cable. 2. Discharge the refrigerant from the system. (See RECOVERY.) (See CHARGING.) 3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT.) 4. Remove the ...

Expansion valve removal/installation
1. Disconnect the negative battery cable. 2. Discharge the refrigerant from the system. (See RECOVERY.) (See CHARGING.) Caution If moisture or foreign material enters the refrigeration cycle, ...
