Mazda 6 Service Manual: Cabin temperature sensor inspection
1. Measure the temperature around the cabin temperature sensor.

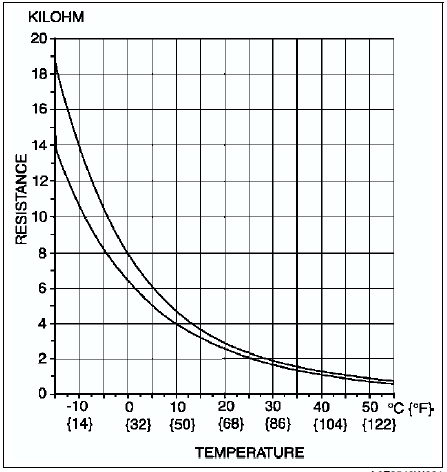

2. Measure the resistance between terminals of the cabin temperature sensor.
- If the resistance is not as shown in the graph, replace the cabin temperature sensor.
Cabin temperature sensor removal/installation
1. Disconnect the negative battery cable.
2. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of re ...
Evaporator temperature sensor removal/installation
Remove the evaporator temperature sensor from the A/C unit. (See A/C UNIT
DISASSEMBLY/ASSEMBLY.) ...
