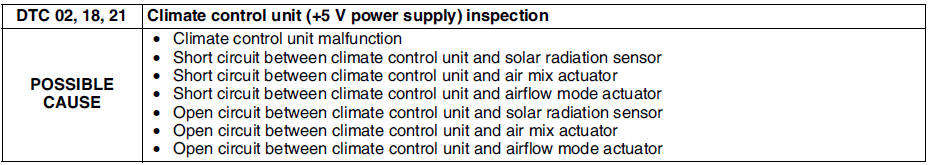

Mazda 6 Service Manual: Dtc 02, 18, 21 (when two or more dtcs are indicated at the same time)

Mazda 6 Service Manual / Heater and air conditioner systems / On-board diagnostic / Dtc 02, 18, 21 (when two or more dtcs are indicated at the same time)

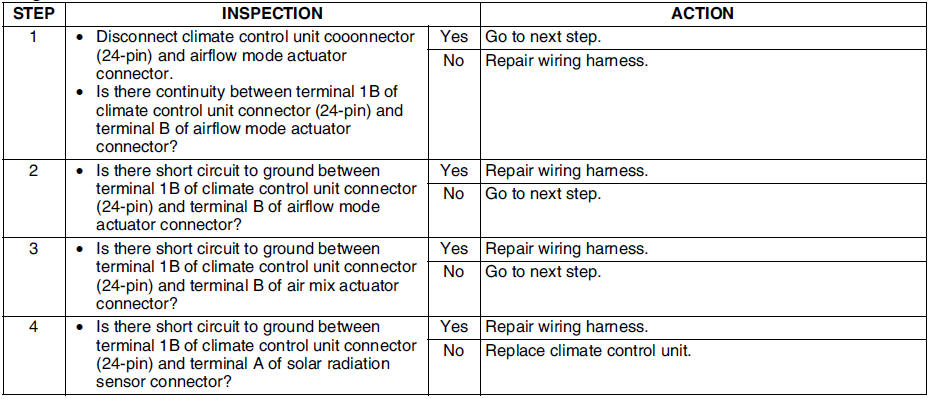

Diagnostic Procedure


Dtc 59
Diagnostic Procedure ...

Dtc 06, 10, 12, 14, 18, 21 (when two or more dtcs are indicated at the same time)
Diagnostic Procedure ...
