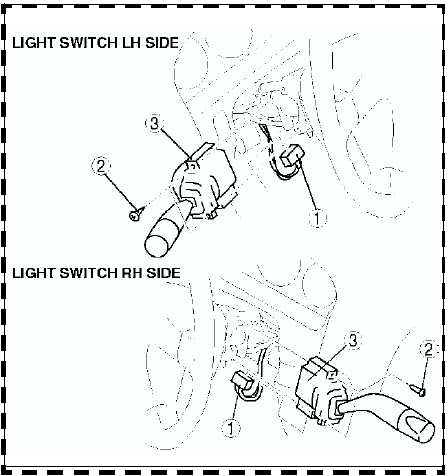

Mazda 6 Service Manual: Light switch removal/installation

1. Disconnect the negative battery cable.

2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION)

3. Remove in the order indicated in the table.



4. Install in the reverse order of removal.
