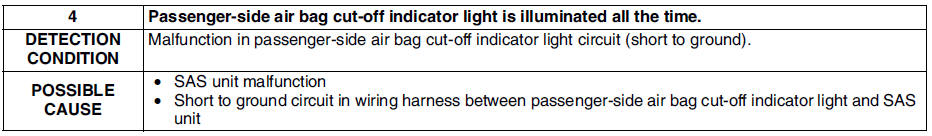

Mazda 6 Service Manual: No.4 passenger-side air bag cut-off indicator light is illuminated all the time

Mazda 6 Service Manual / Body electrical system / Troubleshooting / No.4 passenger-side air bag cut-off indicator light is illuminated all the time

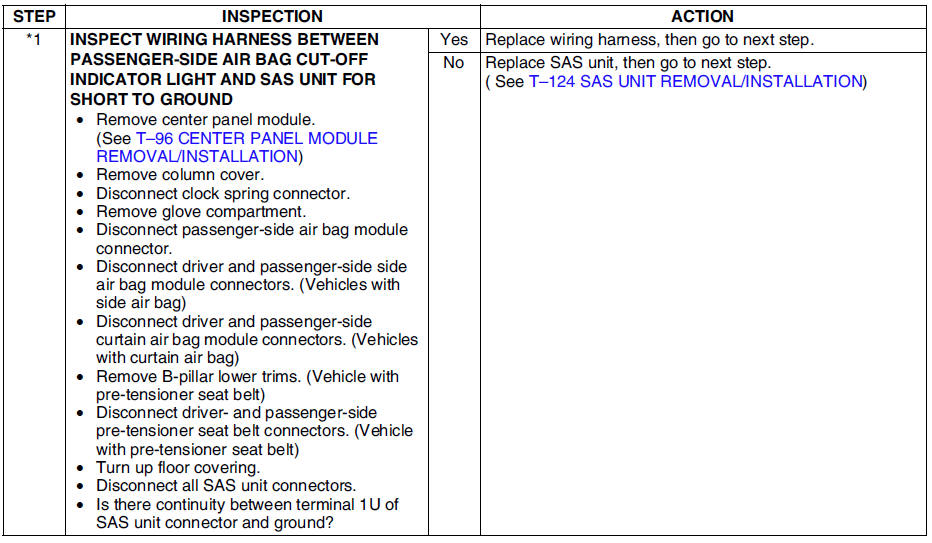

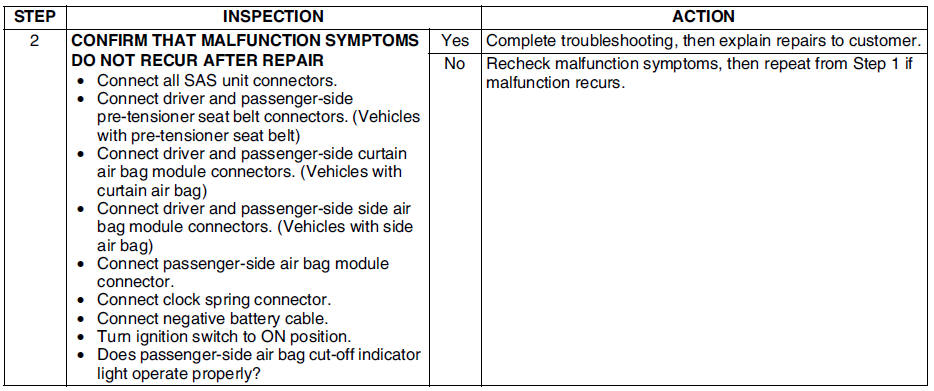

Diagnostic Procedure

When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
