Mazda 6 Service Manual: Recliner motor inspection
1. Disconnect the recliner motor connector.

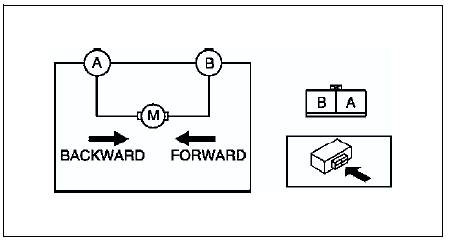

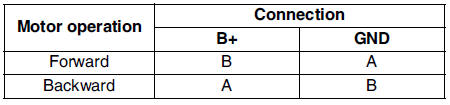

2. Inspect the recliner motor operation when B+ is applied to the terminal as shown.
- If not as specified, replace the seat cushion frame.
Slide motor inspection
1. Disconnect the slide motor connector.
2. Inspect the slide motor operation when B+ is applied to the terminals as
shown.
If not as specified, replace the seat cushion frame.
...
Seat warmer switch removal/installation
1. Disconnect the negative battery cable.
2. Remove the brake boots panel. (See CONSOLE REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of ...
