Mazda 6 Service Manual: Roof molding removal

Mazda 6 Service Manual / Body / Molding / Roof molding removal

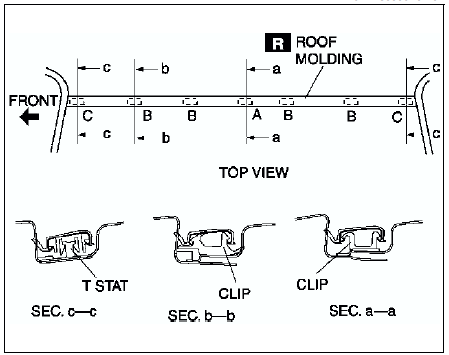

1. Detach the clips which secure A and B sections of roof molding, using a screwdriver or equivalent tool.


2. While pulling the roof molding up, detach the fit for the T stat of the A section and the roof molding and then remove the roof molding.
