Mazda 6 Owners Manual: Specifications

Engine


Electrical System


*1 Q-85 is designed for i-ELOOP system. Only Q-85 should be used to ensure correct operation of i-ELOOP system. Consult an Authorized Mazda Dealer for details.

*2 Not for i-ELOOP system.

*3 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.

Lubricant Quality


Capacities

(Approximate Quantities)


Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions

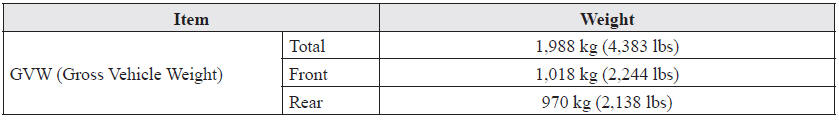

Weights

U.S.A. and Canada


Mexico


Air Conditioner

The type of refrigerant used is indicated on a label attached to the inside of the engine compartment. Check the label before recharging the refrigerant.


Light Bulbs

Exterior light


*1 UNECE stands for United Nations Economic Commission for Europe.

*2 LED is the abbreviation for Light Emitting Diode.

Interior light


*Some models.

*1 UNECE stands for United Nations Economic Commission for Europe.

*2 LED is the abbreviation for Light Emitting Diode.

Tires

NOTE

The tires have been optimally matched with the chassis of your vehicle.

When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.

After adjusting the tire pressure, initialization of the tire pressure monitoring system is necessary to make the system operates normally.

Standard tire

(U.S.A. and Canada)


(Mexico)


1 person's weight: About 75 kg

Temporary spare tire

(U.S.A. and Canada)


(Mexico)


Lug nut tightening torque

When installing a tire, tighten the lug nut to the following torque.

108—147 N·m (12—14 kgf·m, 80—108 ft·lbf)
