Mazda 6 Service Manual: Vise

Mazda 6 Service Manual / General information / Fundamental procedures / Vise

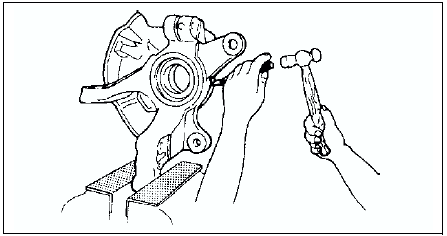

When using a vise, put protective plates in the jaws of the vise to prevent damage to parts.
