Mazda 6 Owners Manual: Coming Home Light
The coming home light turns on the headlights (low beams) when the lever is operated.
To turn on the lights

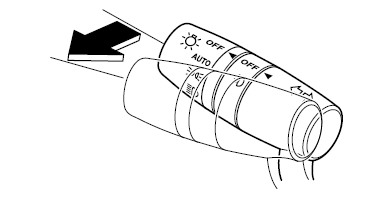

When the lever is pulled with the ignition switched to ACC or OFF, the low beam headlights turn on.
The headlights turn off after a certain period of time has elapsed after the doors are closed.
NOTE
- The time until the headlights turn off after all of the doors are closed can be changed.
- If no operations are done for 3 minutes after the lever is pulled, the headlights turn off.
- The headlights turn off if the lever is pulled again while the headlights are illuminated.
Flashing the Headlights
Can be used when the ignition is switched ON.
To flash the headlights, pull the lever fully towards you (the headlight switch
does not need to be on).
The headlight high-beam indicator light in ...
Leaving Home Light
The leaving home light turns on the lights when the transmitter unlock button
is pressed while away from the vehicle.
The following lights turn on when the leaving home light is operated.
Low beam ...
