Mazda 6 Service Manual: Front door speaker inspection

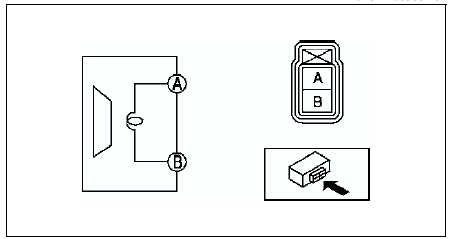

1. Inspect for resistance between the front door speaker terminals using an ohmmeter.
- If not as specified, replace the front door speaker.
2. To verify that the front door speaker outputs sound, apply voltage to the front door speaker and release using a 1.5-V battery.
- If not outputs sound, replace the front door speaker.
Front door speaker removal/installation
1. Disconnect the negative battery cable.
2. Remove the front door trim.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Front Door Speaker Installat ...
Rear door speaker removal/installation
1. Disconnect the negative battery cable.
2. Remove the rear door trim.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Rear Door Speaker Installatio ...
