Mazda 6 Service Manual: Fuel-filler lid adjustment

Mazda 6 Service Manual / Body / Fuel-filler lid and opener / Fuel-filler lid adjustment

1. If not as specified, loosen the fuel-filler lid installation bolts, and reposition the fuel-filler lid.

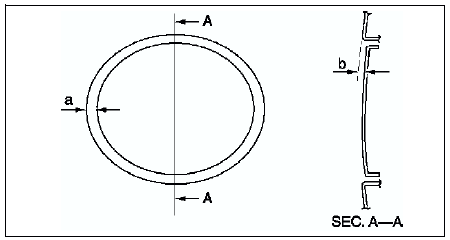

2. Measure the gap and height between the fuel-filler lid and the body.

Clearance
a: 1.7-3.7 mm {0.067-0.145 in} b: -0.5-1.5 mm {-0.019-0.059 in}

3. Tighten the bolts.
