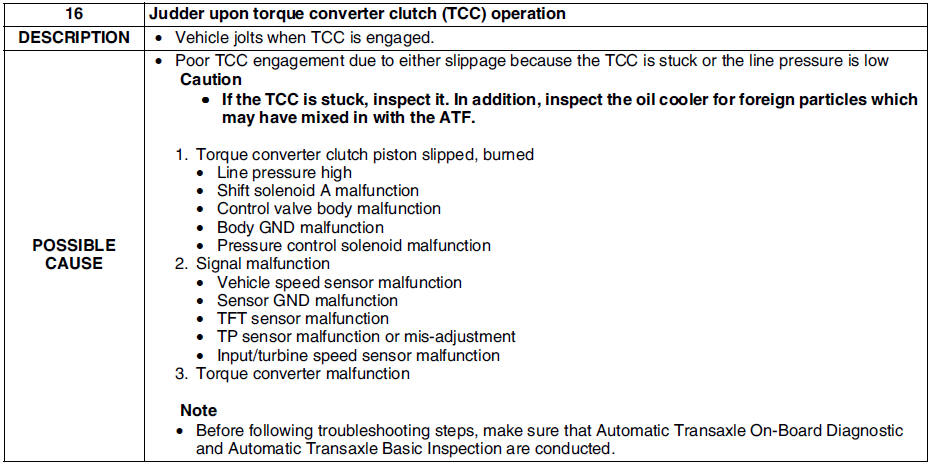

Mazda 6 Service Manual: No.16 judder upon torque converter clutch (tcc) operation

Mazda 6 Service Manual / Automatic transaxle / Troubleshooting / No.16 judder upon torque converter clutch (tcc) operation

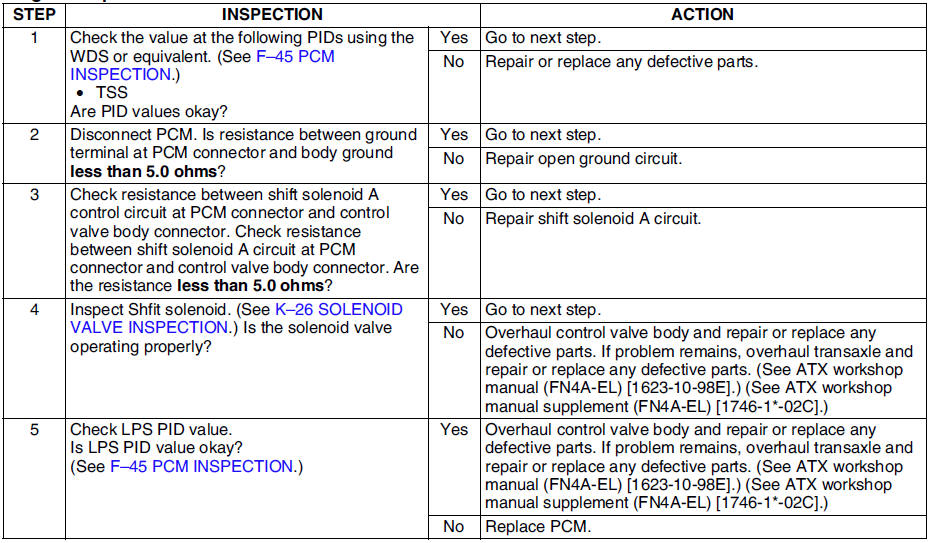

Diagnostic procedure
