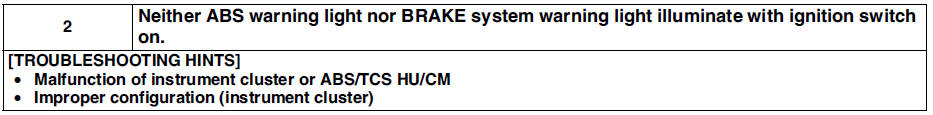

Mazda 6 Service Manual: No.2 neither abs warning light nor brake system warning lightilluminate with ignition switch on

Mazda 6 Service Manual / Braking system / Troubleshooting (abs/tcs/dynamic stability control) / No.2 neither abs warning light nor brake system warning lightilluminate with ignition switch on

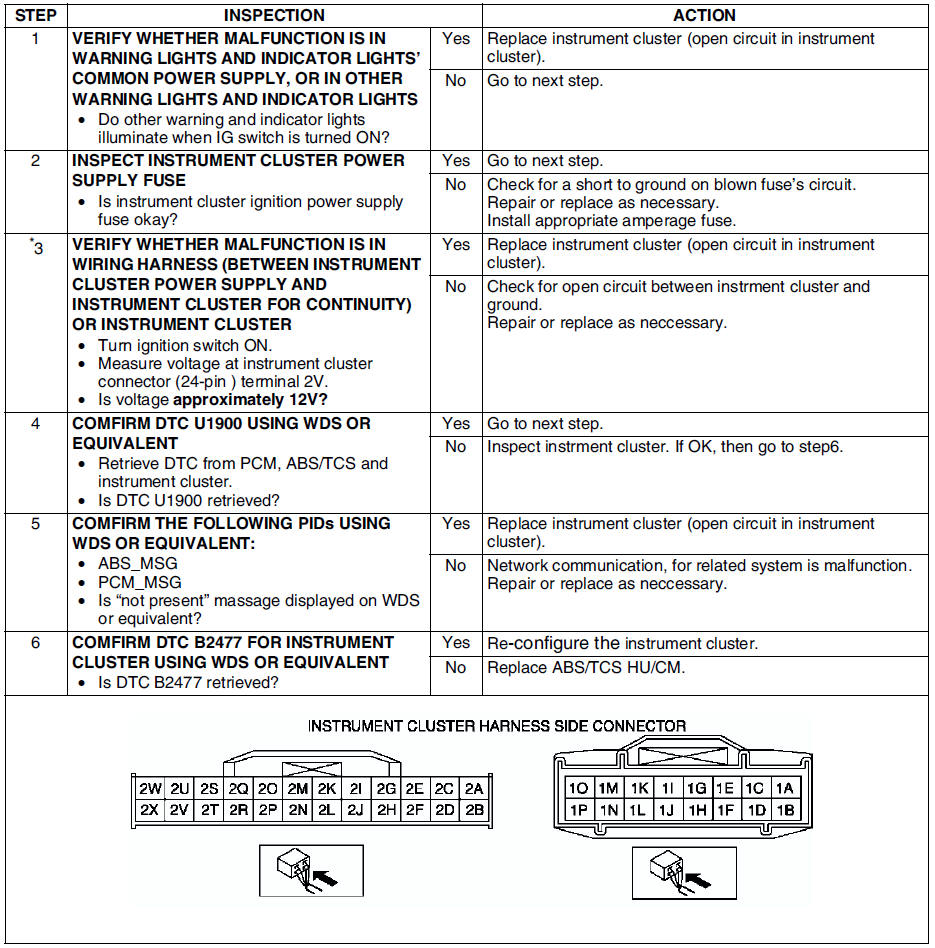

When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
