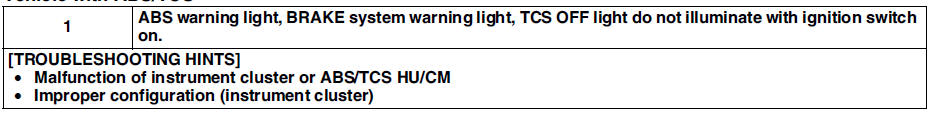

Mazda 6 Service Manual: No.1 abs warning light, brake system warning light, tcs off light do not illuminate with ignition switch on

Mazda 6 Service Manual / Braking system / Troubleshooting (abs/tcs/dynamic stability control) / No.1 abs warning light, brake system warning light, tcs off light do not illuminate with ignition switch on

Vehicle with ABS/TCS

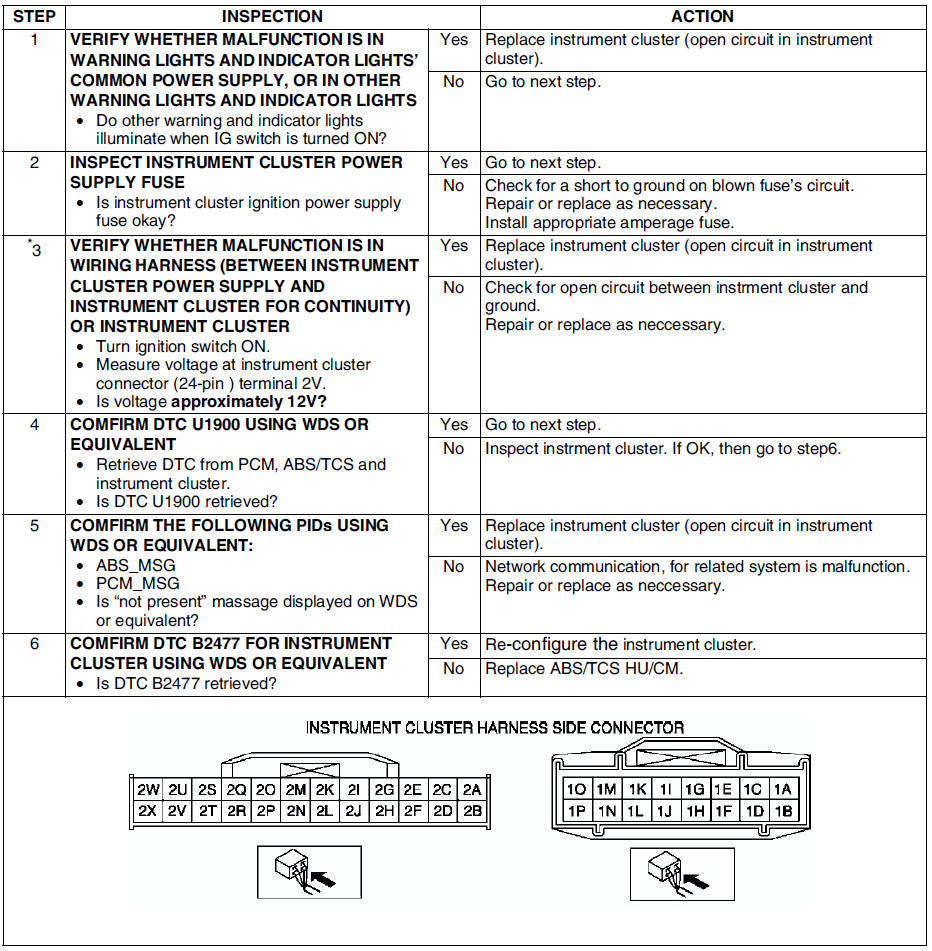

When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
