Mazda 6 Service Manual: Symptom troubleshooting
- Verify the symptoms, and perform troubleshooting according to the appropriate number.
Vehicles with ABS/TCS

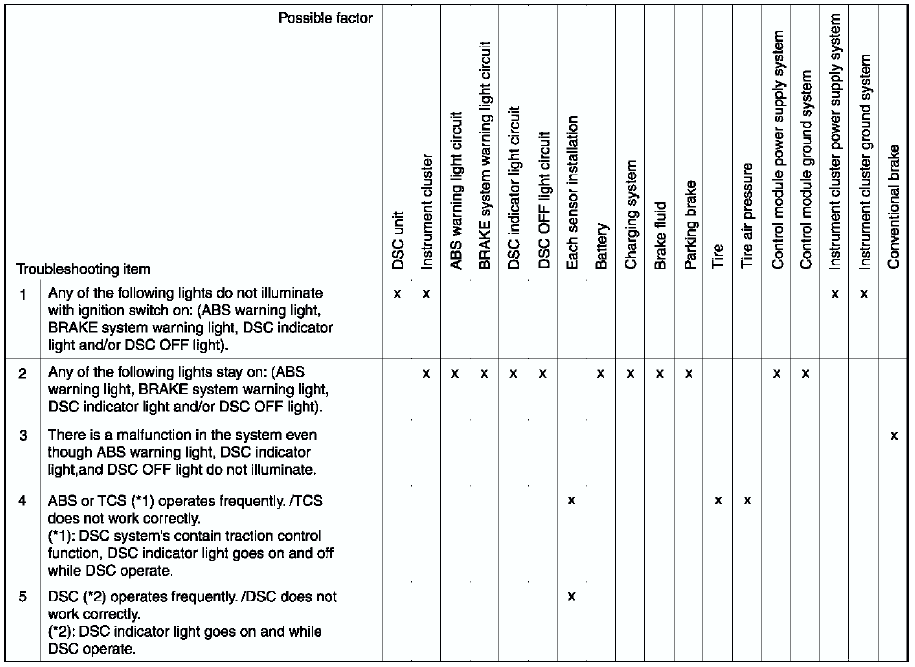

Vehicles with DSC
*1 : DSC system contains traction control function, DSC indicator light goes on and off while DSC operates.
*2 : DSC indicator light goes on and off while DSC operates.
Vehicle with ABS/TCS

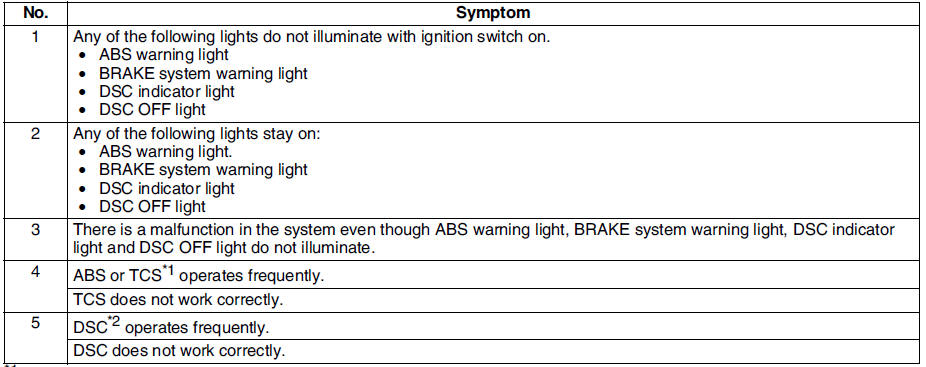

Vehicle with DSC
Precaution
Vehicles with ABS/TCS
1. The ABS warning light, BRAKE system warning light, TCS indicator light
and/or TCS OFF light illuminate even when the system is normal.
*1 : In cases where the light may ...
No.1 abs warning light, brake system warning light, tcs off light do not
illuminate with ignition switch on
Vehicle with ABS/TCS
When performing an asterisked (*) troubleshooting inspection, shake the
wiring harness and connectors while doing the inspection to discover whether
poor contact poi ...
