Mazda 6 Service Manual: Variable tumble control solenoid valve inspection
1. Remove the variable tumble control solenoid valve. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)

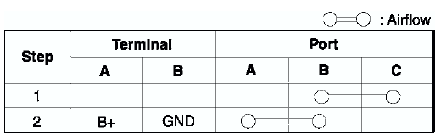

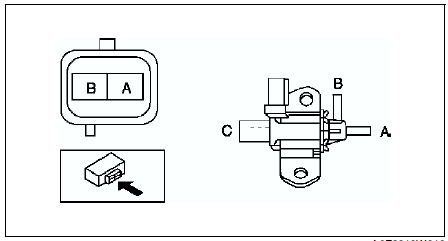

2. Inspect airflow between the ports under the following conditions.
- If not as specified, replace the variable tumble control solenoid valve.
- If as specified, carry out the Circuit Open/Short Inspection.
Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION.)

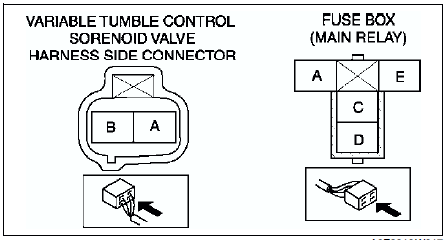

2. Inspect the following wiring harness for open or short (continuity check).
Open circuit
- If there is no continuity, the circuit is open. Repair or replace the harness.
- Variable tumble control solenoid valve terminal B (harness-side) and PCM terminal 4T
- Variable tumble control solenoid valve terminal A (harness-side) and main relay terminal C (harness-side)
Short circuit
- If there is continuity, the circuit is shorted. Repair or replace the harness.
- Variable tumble control solenoid valve terminal B (harness-side) and body GND
- Variable tumble control solenoid valve terminal A (harness-side) and power supply
