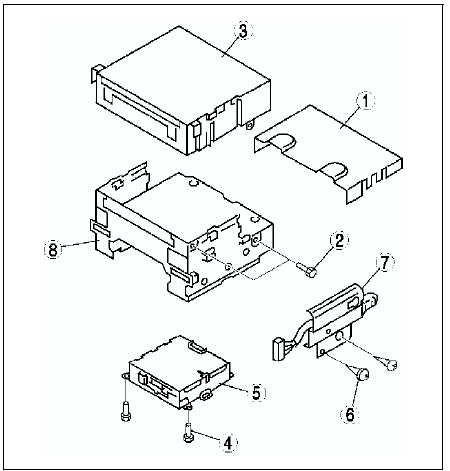

Mazda 6 Service Manual: Audio unit disassembly/assembly

1. Remove the audio unit. (See CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY.)

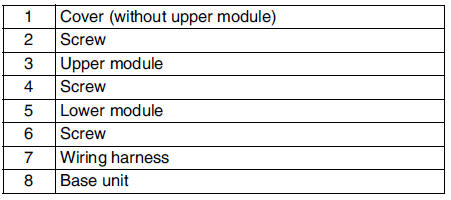

2. Disassemble in the order indicated in the table.



3. Assemble in the reverse order of disassembly.
