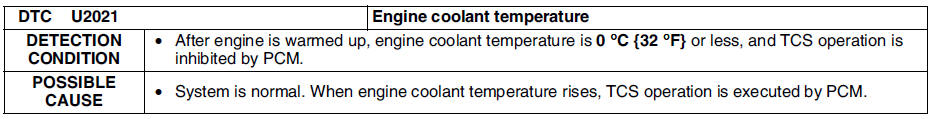

Mazda 6 Service Manual: Dtc u2021
Note
- To warm up the engine completely, idle the engine and wait for more than 5 minutes.
Diagnostic procedure
Dtc c1955, c1956
Caution
When attaching the tester lead to the DSC HU/CM connector the SST
(49 G066 004) must be used.
Diagnostic procedure
...
