Mazda 6 Service Manual: Fuel-filler lid adjustment
1. If not as specified, loosen the fuel-filler lid installation bolts, and reposition the fuel-filler lid.
2. Measure the gap and height between the fuel-filler lid and the body.

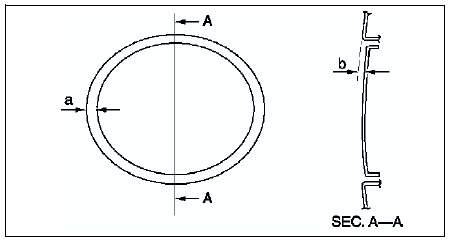

Clearance
a: 1.7-3.7 mm {0.067-0.145 in} b: -0.5-1.5 mm {-0.019-0.059 in}
3. Tighten the bolts.
Fuel-filler lid and opener removal/installation
1. To remove the fuel-filler lid opener, remove the left side trunk side trim
(4SD) or trunk side lower trim (5HB).
2. To remove the fuel-filler lid opener cable, perform the following and turn
o ...
