Mazda 6 Service Manual: Auto leveling control unit configuration

Mazda 6 Service Manual / Body electrical system / Exterior lighting system / Auto leveling control unit configuration

1. Connect the SST

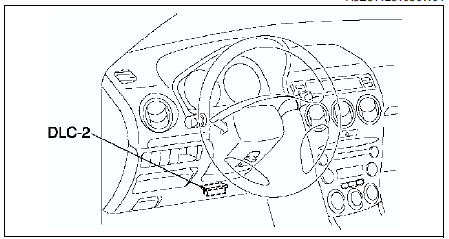

(WDS or equivalent) to the DLC-2.


2. Input vehicle information following the directions on the screen.

3. Select Module programming.

4. Select Programmable module installation.

5. When performing configuration corresponding to each auto leveling control unit, select the following items and perform procedures according to directions on the screen.

Items

  • Main: LHID

  • Sub: RHID

6. Retrieve DTCs by the WDS or equivalent, then verify that there is no DTC present.

Discharge headlight control unit removal/installation
Caution Incorrect servicing of the discharge headlight control unit could result in electrical shock. Before servicing the discharge headlight control unit, always refer to the Discharge hea ...

Headlight zeroset
Note When the configuration is not set for the auto leveling control unit, headlight zeroset cannot be executed. 1. Adjust the tire air pressure to the specification. 2. Position the unloade ...
