Mazda 6 Service Manual: B-pillar upper trim removal/installation

Mazda 6 Service Manual / Body / Trim / B-pillar upper trim removal/installation

1. Remove the upper anchor of the front seat belt.

2. Remove the B-pillar lower trim.

3. Turn the seaming welt over.

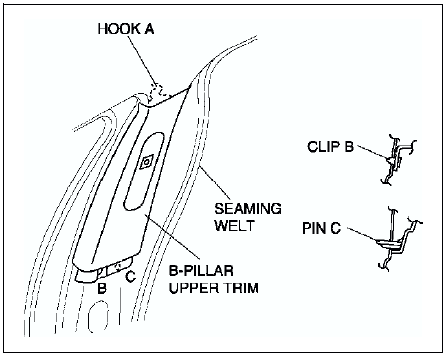

4. Pull the B-pillar upper trim toward you, then disengage, clip B, and pin C from the body.

5. Disengage hook A from the body, then remove B-pillar upper trim.

6. Install in the reverse order of removal.

B-pillar lower trim removal/installation
1. Remove the front scuff plate. 2. Remove the rear scuff plate. 3. Pull the area marked A, then remove one side of the B-pillar lower trim. 4. Pull the B-pillar lower trim, then remove the pin f ...

Front side trim removal/installation
1. Remove the front scuff plate. 2. Turn the seaming welt over. 3. Pull the front side trim toward you, then disengage clip A and the stud bolt, then remove the front side trim. 4. Install in t ...

Other materials:

Mazda 6 Service Manual: Instrument cluster removal/installation
Caution When replacing the instrument cluster, the configuration procedure must be performed before removing the instrument cluster. If the configuration procedure is not performed before removing the instrument cluster, it is possible that the instrument cluster will not operate normally. ...

Mazda 6 Service Manual: Wheel hub, steering knuckle pre-inspection
Wheel Bearing Play Inspection 1. Position a dial indicator against the wheel hub. 2. Push and pull the wheel hub by hand in the axial direction and measure the wheel bearing play. Maximum wheel bearing play 0.05 mm {0.002 in} 3. If the bearing play exceeds the specification, replace and tig ...
