Mazda 6 Service Manual: Climate control unit removal

1. Disconnect the negative battery cable.

2. Disconnect the air mix and airflow mode wires from each wire clamp and link. (Manual air conditioner)

3. Remove the center panel. (See CENTER PANEL MODULE REMOVAL/INSTALLATION.)

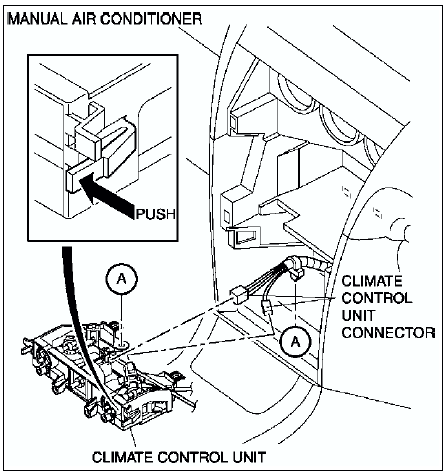

4. Remove the screws and climate control unit. (Full-auto air conditioner)

5. Release the hook and pull the climate control unit toward you. (Manual air conditioner)

6. Disconnect the climate control unit connectors and remove the climate control unit. (Manual air conditioner)



Refrigerant pressure switch inspection
1. Install the SST (gas charging set). 2. Disconnect the refrigerant pressure switch connector. 3. Verify the high-pressure side reading of the SST (manifold gauge) and continuity between the term ...

Climate control unit installation
1. Pass each wire through the following routes then connect to A/C unit. (Manual air conditioner) 2. Connect the climate control unit connectors. (Manual air conditioner) 3. Install the climate ...
