Mazda 6 Owners Manual: Flashing the Headlights
Can be used when the ignition is switched ON.

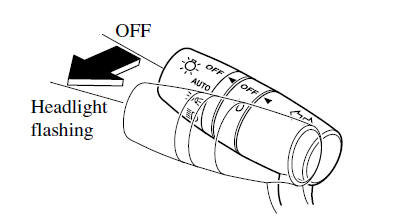

To flash the headlights, pull the lever fully towards you (the headlight switch does not need to be on).
The headlight high-beam indicator light in the instrument cluster illuminates simultaneously. The lever will return to the normal position when released.
Headlight High-Low Beam
The headlights switch between high and low beams by moving the lever forward
or backward.
When the headlight high-beams are on, the headlight high-beam indicator light
is turned on.
...
Coming Home Light
The coming home light turns on the headlights (low beams) when the lever is operated.
To turn on the lights
When the lever is pulled with the ignition switched to ACC or OFF, the low beam
headligh ...
