Mazda 6 Service Manual: Front antenna feeder inspection

1. Verify that there is no continuity between the front antenna feeder terminals A and B using an ohmmeter.

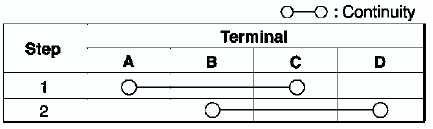

2. Inspect for continuity between the front antenna feeder terminals using an ohmmeter.

Antenna feeder location
...
