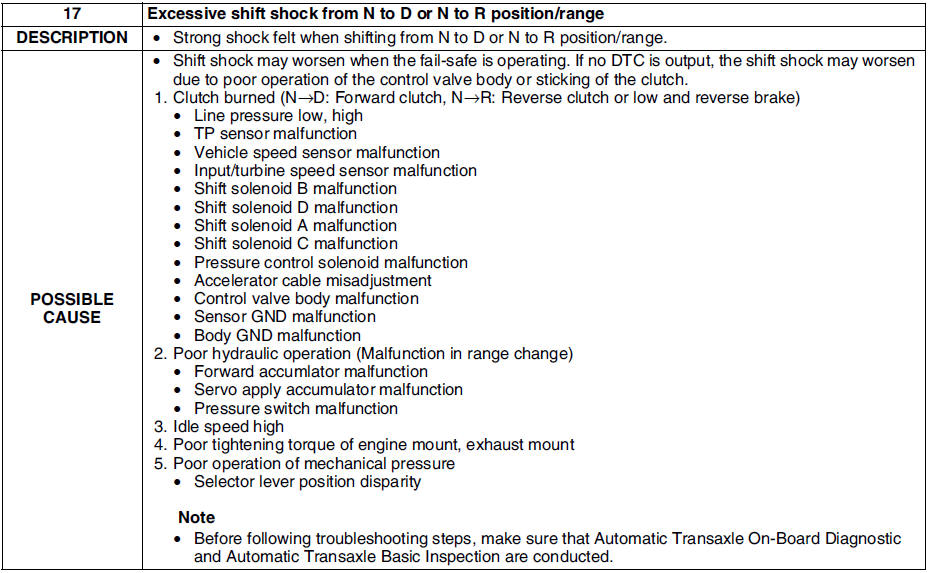

Mazda 6 Service Manual: No.17 excessive shift shock from n to d or n to r position/range

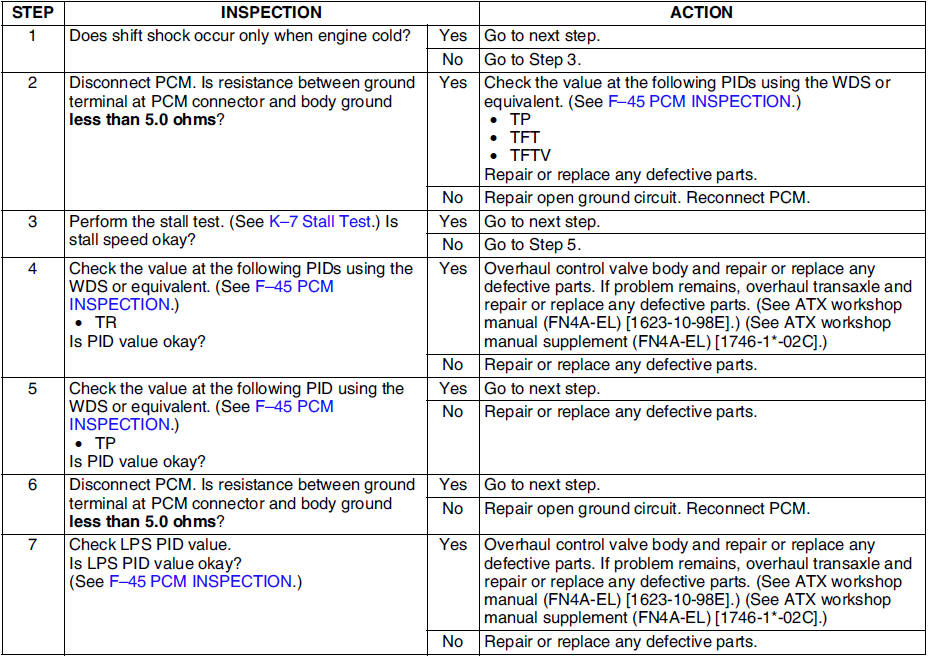

Diagnostic procedure
