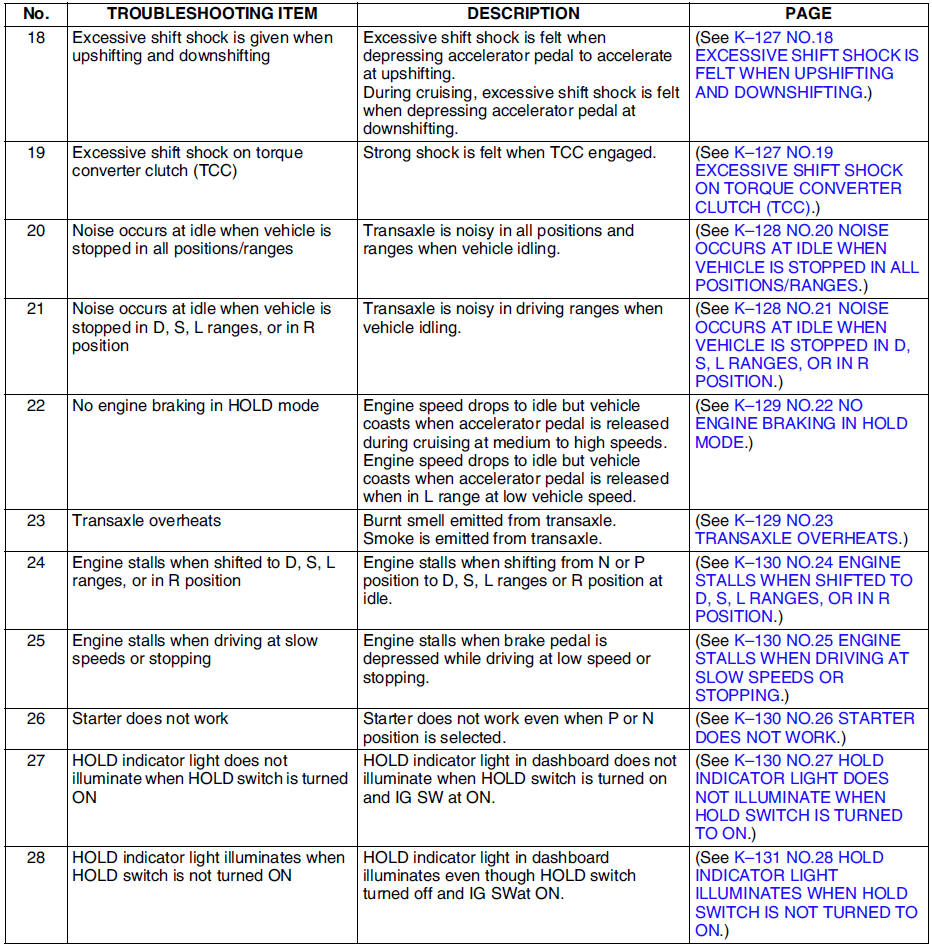

Mazda 6 Service Manual: Symptom troubleshooting item table

Mazda 6 Service Manual / Automatic transaxle / Troubleshooting / Symptom troubleshooting item table



Basic inspection
...

Quick diagnosis chart
...
